Machine frame made of mineral casting:
Non-sensitive to external interferences,
No separate foundation required
CAB measuring unit technology:
Schenck standard with PC-technology
according to industry standards
and with touchscreen terminal
Schenck Service:
Global service network with
24-hour helpdesk availability
Maximum rotor weight: 15 kg
Maximum rotor diameter: 350 mm
Journal diameter: 6 – 70 mm
Bearing centre distance: 60 – 600 mm
Minimum achievable residual unbalance: 0,1 gmm
Non-magnetic component design

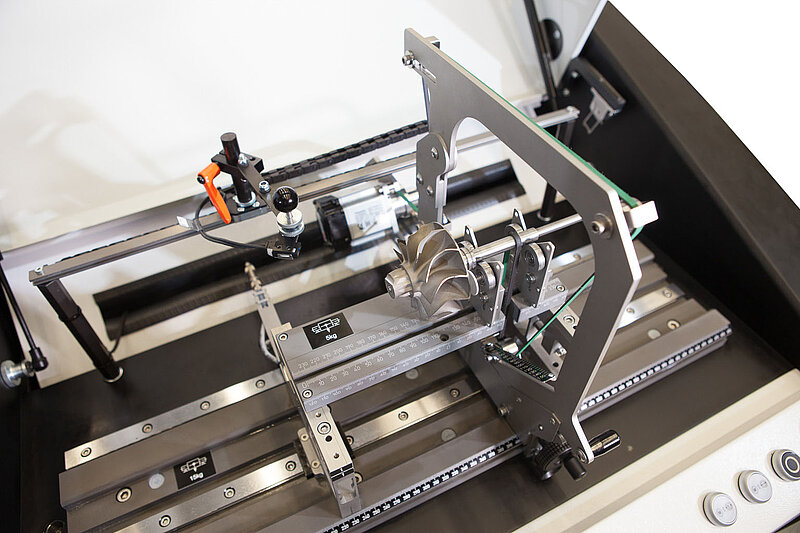

- Basis for balancing conventional turbocharger
components and permanently magnetised rotors - Bode and Nyquist plots including real time display
during run-up - Processing of different reference marks by the reference
sensor using laser technology - CAB 920 measuring unit: precise, reliable, high-end
Advantages at a glance
- Highest degree of measurement accuracy
- Easy operation thanks to intuitive menu guide
- Extensive evaluation, export and analysis options
- Highest safety standards as per CE
- Compact monoblock machine made of mineral casting
- Broad range of applications (passenger car, truck, marine)
- Considerable economic efficiency (quick change over to small batch sizes)
- Fast and precise determination of the unbalance
